🚀 Labomaru’s Extreme Hack & Geek Teardown!
“Who needs modern multi-GPU clusters when you have 32MB of RAM and pure low-level C engineering grit? Running a transformer model on a 2004 handheld console is the ultimate triumph of memory optimization over raw compute! 🐶⚡”
- 🏢 Creator / Hacker: Individual Developer (r/LocalLLaMA Community)
- 🎮 Target Hardware: Sony PSP-1000 (333MHz MIPS R4000, 32MB RAM)
- 🧠 Model Footprint: 90M Parameters / Sub-2-bit (1.x-bit) Quantization
- 📜 Source & License: Open Source Bare-Metal C Engine (Free)
- 🎯 Utility Rating: Pure Geek Hack ★☆☆☆☆ (Proof of Concept)
- 💡 Core Engineering Takeaway: Sub-32MB static buffer allocation, zero-heap runtime, and custom weight compression
Section 1: The Breakthrough & Hacker Spirit (The Full Story)

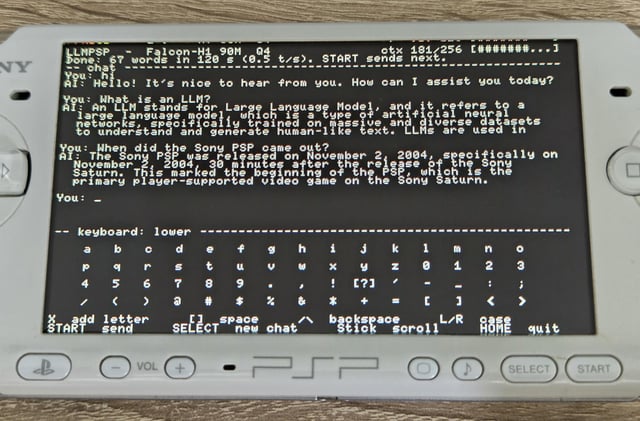

In an era where state-of-the-art AI research is dominated by multi-billion parameter models requiring enterprise GPU clusters and vast memory bandwidth, a landmark community experiment surfaced on r/LocalLLaMA: loading and running a 90-million parameter conversational LLM natively on a Sony PlayStation Portable (PSP-1000) released in 2004.
Built by a dedicated embedded developer, this project proves that neural networks can be stripped down to execute on hardware created over two decades ago. Rather than relying on cloud streaming or remote API calls, the PSP loads quantized weights into its local 32MB RAM and performs matrix multiplication directly on its MIPS CPU.
While the project is explicitly a proof-of-concept (PoC) rather than a practical daily driver, it has captured the imagination of software architects worldwide. It serves as a masterclass in bare-metal systems programming, zero-allocation memory management, and aggressive neural network compression.
Section 2: Physical & Memory Constraints (Why It Shouldn’t Work)
To appreciate the technical scale of this achievement, one must examine the severe physical bottlenecks imposed by the original 2004 Sony PSP-1000 architecture:
- Strict 32MB Main RAM Ceiling: The PSP-1000 features a total of 32MB embedded DRAM shared across the operating system kernel, video buffers, and user space. Even if system overhead is minimized, user space barely yields ~24MB of usable memory.
- 333MHz Single-Core MIPS CPU: Powered by the MIPS R4000-based Allegrex processor running at 333MHz. It lacks modern SIMD vector extensions, AVX instructions, or dedicated AI accelerator blocks.
- Absence of Memory for KV Caches: In standard 16-bit floating-point format (FP16), a 90M parameter model requires roughly 180MB of storage—more than five times the PSP’s total system RAM before accounting for key-value (KV) attention caches.
- Limited Memory Bandwidth: Bus speeds on 2000s handheld consoles are orders of magnitude slower than modern LPDDR5 memory, making weight streaming from flash storage bottlenecked by slow read latency.
Under standard runtime environments (like PyTorch or llama.cpp), attempting to allocate memory for this model on a 32MB device causes immediate out-of-memory (OOM) kernel panics.
Section 3: Engineering Solutions & Memory Architecture
Overcoming these hardware limitations required rethinking the inference runtime from the ground up. The developer implemented three primary architectural hacks:
1. Sub-2-bit (1.x-bit) Extreme Quantization
To squeeze 90 million parameters into under 20MB of memory, the weight tensors were quantized using extreme non-linear sub-2-bit representations (~1.2 to 1.5 bits per parameter). By packing multiple weights into tight bit-fields and utilizing pre-computed lookup tables, weight storage was reduced by over 90% compared to standard INT8 quantization.
2. Bare-Metal C Engine Without Dynamic Allocation
Standard C++ runtimes rely on heap allocation (malloc/free), which induces memory fragmentation—a fatal flaw on a 32MB system. The developer wrote a custom bare-metal C engine using the open-source PSP SDK. All memory buffers (input context, intermediate activations, attention states) are statically pre-allocated into continuous memory blocks during boot.
3. Context Length Truncation & Static KV Cache
To prevent the attention mechanism from exceeding available RAM, the KV cache length is capped at minimal context lengths (e.g., 32 to 64 tokens). Weight matrices are evaluated sequentially layer-by-layer to keep activation memory locked within fixed bounds.
Section 4: Reproduction & Simulation Code (Minimal Python/CLI Harness)
While running the native PSP binary requires custom firmware (CFW) and the Sony PSP SDK, engineers can simulate ultra-low-memory transformer constraints on local dev machines or high-throughput cloud environments like RunPod ($0.20/hr~).
Below is a minimal Python harness demonstrating low-footprint execution using lightweight architectures such as SmolLM-135M with low-precision execution parameters:
